Project Description

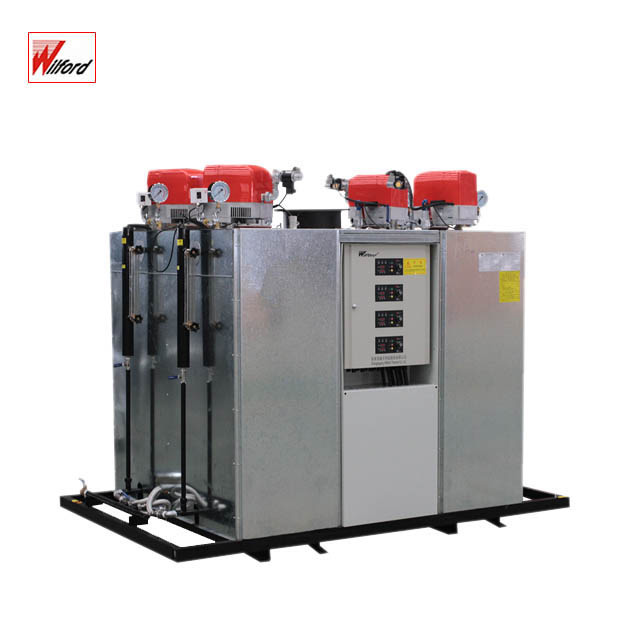

LSS Series Gas-Oil Fired Skid-Mounted Boiler
0.7-1.25 Mpa
Rated Steam Capacity :50-500kg/h; Rated Working Pressure :0.7Mpa ;Staturated steam temperature :170℃; Fuel :Natural gas, diesel oil, LPG, Pipeline gas, etc. Industry :Foods, Garment, Taextile, Paper, Brewery, Ricemill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc.On-site installation is convenient and can be used quickly.The corresponding boiler parameters can be customized according to customer requirements.
1.LSS series oil / gas fired steam boiler adopts Fully skid-mounted design to concentrate steam supply.
2. It can realize single independent control or centralized unified control, free of installation design.
3. The method of installing the boiler and all accessories on a base.
4. The entire production and assembly process is done in the factory.
5. On-site installation is convenient and can be used quickly.
6. Compact structure and easy migration.
7.The corresponding boiler parameters can be customized according to customer requirements.

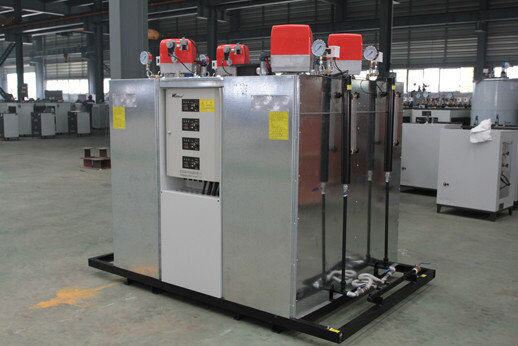

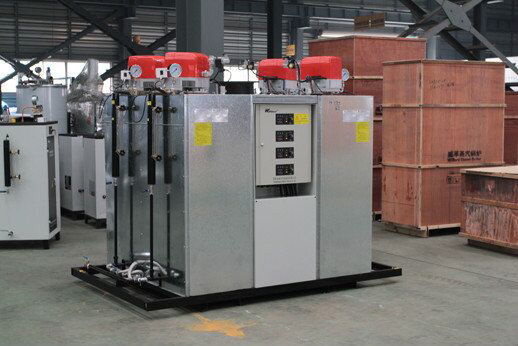

Whole Picture Appreciation
Product Detail Analysis
Project Case
Technological Process
Our Customer
Our Services
For each user, we understand and analyze in detail their different production environment and the shortage of products in order to provide reasonable technical solutions and timely after-sales service. We attach great importance to the effective operation system of boiler products to provide customers with problem solutions, and send experienced engineers to the site to guide. The company has accumulated a wealth of on-site problem-solving experience, providing strong technical support and perfect after-sales service. User success is our success!
Company Information
Wilford company is specialized in manufacturing the medium and small sized boilers with high quality to solve the high energy efficiency requirements of customers in industrial and commercial fields for steam and heat sources. We supply the whole solution of boilers and boiler systems, reduce energy consumption, save operating costs for each plant, enhancing the environmental protection requirements.
Since 1998, the company are insisted on intelligent and lean production as the leading factor to ensure that each product is super safe and high quality. The fuel, gas and electric heating boilers have high technical content. The company has won many inventions, many high-tech products and new technology and new product awards. We regard the boiler’s efficiency index and extremely low nitrogen emission requirements as the main innovation objectives, Keep unremitting efforts in the environmental protection and energy saving of boilers.
Our products have obtained ASME, CE, SIGAPORE MOM, MALAYSIA DOSCH, AUSTRALIAN WORK SAFE, RUSSIA CU-TR and other certification, the local registration of various countries and other problems are very professional, we have a very strong service team, good service for each customer is our only pursuit!
LSS National inspection-free oil(gas )steam generator | |||||||||
Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.125-0.7-Y.Q | LSS0.2-0.7-Y.Q | LSS0.25-0.7-Y.Q | LSS0.3-0.7-Y.Q | LSS0.5-0.7-Y.Q | ||
Project | Unit | ||||||||
Rated evaporation | Kg/h | 50 | 100 | 125 | 200 | 250 | 300 | 500 | |
Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
Staturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
Fuel consumption | Light diesel oil | kg/h | 3.5 | 6.8 | 8.5 | 14 | 16 | 20 | 33 |
Natural gas | Nm³/h | 3.5 | 7.3 | 9.2 | 14.5 | 19 | 22 | 36.5 | |
LPG | Nm³/h | 3.3 | 5.7 | 7.2 | 11.4 | 7.5 | 17.3 | 28.7 | |
City gas | Nm³/h | 8.5 | 18 | 22.5 | 34 | 43 | 52 | 88 | |
Water capacity | L | 29 | 49.3 | 49.3 | 49.5 | 49.5 | 49.5 | 49.6 | |
a Main steam valve diameter | DN | 15 | 25 | 25 | 32 | 32 | 32 | 50 | |
b Safety valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 40 | |
c Inlet diamater | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
d Blowoff Valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 25 | |
Chimney diameter | DN | 80 | 125 | 125 | 150 | 150 | 150 | 250 | |
Overall size | L | mm | 820 | 880 | 900 | 1400 | 1500 | 1500 | 1800 |
W | mm | 890 | 1100 | 1150 | 1000 | 1100 | 1200 | 1300 | |
H | mm | 1600 | 1800 | 1900 | 1000 | 2200 | 2200 | 2350 | |
Weight | kg | 180 | 220 | 240 | 850 | 1150 | 1200 | 1680 |
Q : Are you a factory or a trading company?
A : We are a 20-year-old industrial boiler factory , specializing in gas oil diesel electric fired boilers. Now we are one of leading industrial boiler manufacturers in China.
Q : What is the Warranty for the boilers?
A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.
Q : How long should we wait for delivery?
A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time .
Q What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
