Project Description

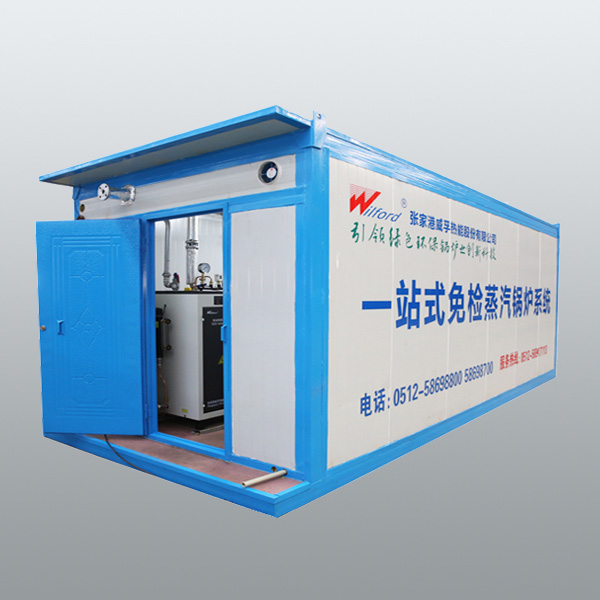

Electric Fully Skid-Mounted boiler
0.7Mpa
Rated Steam Capacity:12-125kg/h;Rated Working Pressure:0.7Mpa;Input Power:9-90KW;Industry:Foods, Garment, Taextile, Paper, Brewery, Ricemill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc. Skid-mounted boiler system, free of installation.The customer’s on-site installation is small, and the production and assembly are all done in the factory.According to customer needs, humanized design.
1. Skid-mounted boiler system, free of installation.
2. The customer’s on-site installation is small, and the production and assembly are all done in the factory.
3. To some extent, some technical problems at the construction site have been solved.
4. The customer only needs to complete the interface pipe and external electrical connection.
5. Convenient for overall migration, smaller footprint than traditional installation methods.
6. According to customer needs, humanized design.

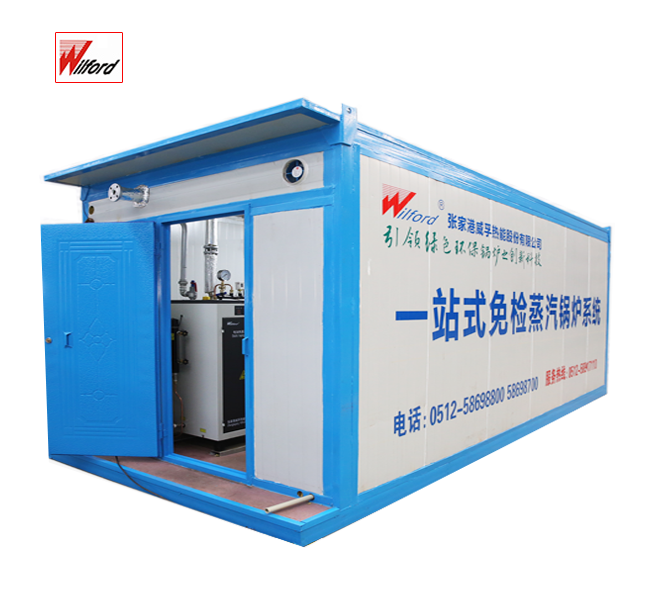

Whole Picture Appreciation

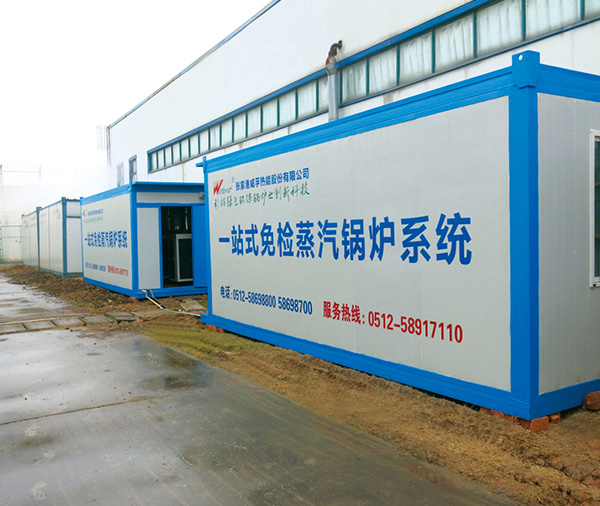

Project Case
Technological Process
Our Customer
Our Services
For each user, we understand and analyze in detail their different production environment and the shortage of products in order to provide reasonable technical solutions and timely after-sales service. We attach great importance to the effective operation system of boiler products to provide customers with problem solutions, and send experienced engineers to the site to guide. The company has accumulated a wealth of on-site problem-solving experience, providing strong technical support and perfect after-sales service. User success is our success!
Company Information
Wilford company is specialized in manufacturing the medium and small sized boilers with high quality to solve the high energy efficiency requirements of customers in industrial and commercial fields for steam and heat sources. We supply the whole solution of boilers and boiler systems, reduce energy consumption, save operating costs for each plant, enhancing the environmental protection requirements.
Since 1998, the company are insisted on intelligent and lean production as the leading factor to ensure that each product is super safe and high quality. The fuel, gas and electric heating boilers have high technical content. The company has won many inventions, many high-tech products and new technology and new product awards. We regard the boiler’s efficiency index and extremely low nitrogen emission requirements as the main innovation objectives, Keep unremitting efforts in the environmental protection and energy saving of boilers.
Our products have obtained ASME, CE, SIGAPORE MOM, MALAYSIA DOSCH, AUSTRALIAN WORK SAFE, RUSSIA CU-TR and other certification, the local registration of various countries and other problems are very professional, we have a very strong service team, good service for each customer is our only pursuit!
LDR National Inspection-free Electrical Steam Generator | |||||||||||
Model | LDR0.012-0.7 | LDR0.016-0.7 | LDR0.025-0.7 | LDR0.035-0.7 | LDR0.05-0.7 | LDR0.06-0.7 | LDR0.08-0.7 | LDR0.1-0.7 | LDR0.125-0.7 | ||
Project | UNIT | ||||||||||
Rated evaporation | Kg/h | 12 | 16 | 25 | 35 | 50 | 60 | 80 | 100 | 125 | |
Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
Saturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
Input power | KW | 9 | 12 | 18 | 27 | 36 | 40 | 54 | 72 | 90 | |
Input current | A | 14 | 18 | 27 | 41 | 54 | 60 | 81 | 108 | 135 | |
Rated voltage | V | 3N AC 50Hz 380V | |||||||||
aMain steam valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 | 25 | |
bSafety valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 | 25 | |
cInlet diamater | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
dBlowoff valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 20 | 20 | |
Overall size | L | mm | 540 | 540 | 540 | 540 | 650 | 650 | 650 | 800 | 800 |
W | mm | 650 | 650 | 650 | 650 | 660 | 660 | 660 | 800 | 800 | |
H | mm | 980 | 980 | 1100 | 1100 | 1380 | 1380 | 1380 | 1580 | 1580 | |
Weight | kg | 95 | 95 | 105 | 105 | 130 | 130 | 135 | 195 | 195 | |
According to customer order requirements, the company can provide customized products for specific power supply in the world. |
Q : Are you a factory or a trading company?
A : We are a 20-year-old industrial boiler factory , specializing in gas oil diesel electric fired boilers. Now we are one of leading industrial boiler manufacturers in China.
Q : What is the Warranty for the boilers?
A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.
Q : How long should we wait for delivery?
A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time .
Q What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
