Project Description
CLDR Vertical Electric Heating Hot Water Boiler
0.03-0.65MW atmospheric pressure
Rated thermal power :0.03-0.65MW; Rated working pressure :Ordinary pressure; Total heating capacity :25000-542000kcal; Input power :30-650KW; Rated Voltage :3N AC 50Hz 380V; No noise, no pollution, clean and sanitary, is true real green products.Using electricity as heating source ,no smoke output loss ,heating efficiency could up to 98%.Using high-quality stainless steel or alloy steel materials electric heating tubes to ensure long-term boiler safety operation .
1.No noise, no pollution, clean and sanitary, is true real green products.
2.Using high-quality stainless steel or alloy steel materials electric heating tubes to ensure long-term boiler safety operation .”
3.Professional standard control cabinet-advanced technology – standardized production – high-level protection.”
4.Using electricity as heating source ,no smoke output loss ,heating efficiency could up to 98%.”
5.Thermal power lower than 300,000 cal-boiler and electrical control all in one design .Thermal power more than 300,000 cal -Boiler and control cabinet is separate .Different design and structure ,easily for installation and maintenance.
6.Clear mark for wiring connecting ,great convenient for local installation. ”
7.High-performance electromagnetic controller (frequent moves more than one million), build-in branch fuse protection, 120V fuse transformer, power switch directions.
8.Fully automatic operation process control, step-by-step heating element control, recycling start or stop, automatic water supply, automatic alarm for water shortages/over-temperature as well as leakage protection.”
9.We could help design heat preservation equipment .Making good use of electric power cost between on-peak and off-peak, heating system economy of running is enhanced. ”

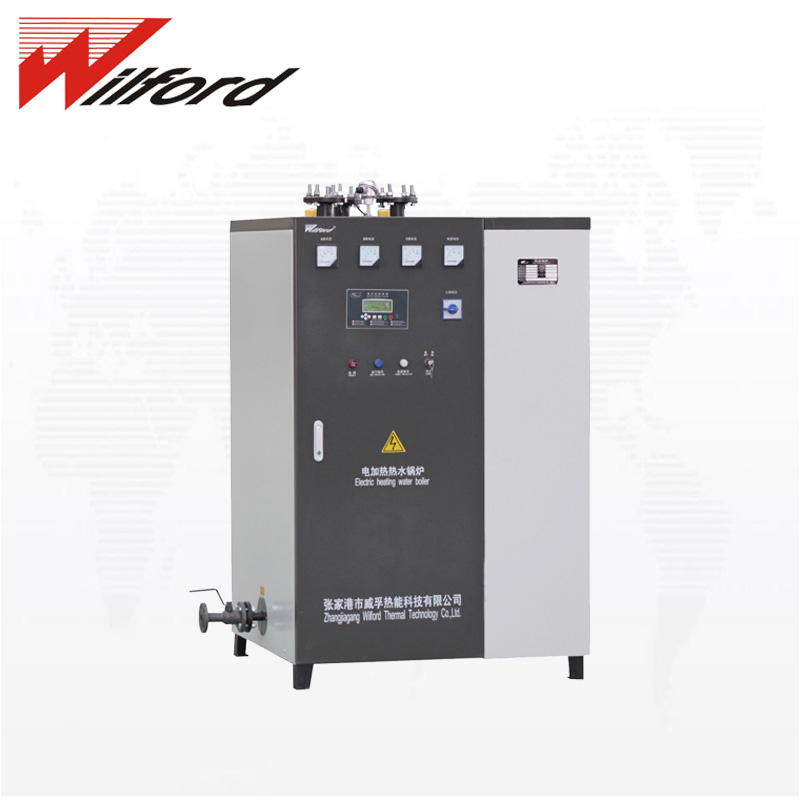

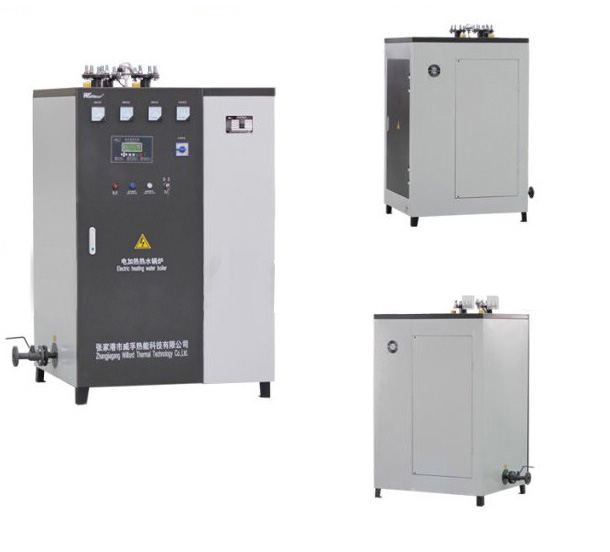

Whole Picture Appreciation
Product system Drawings

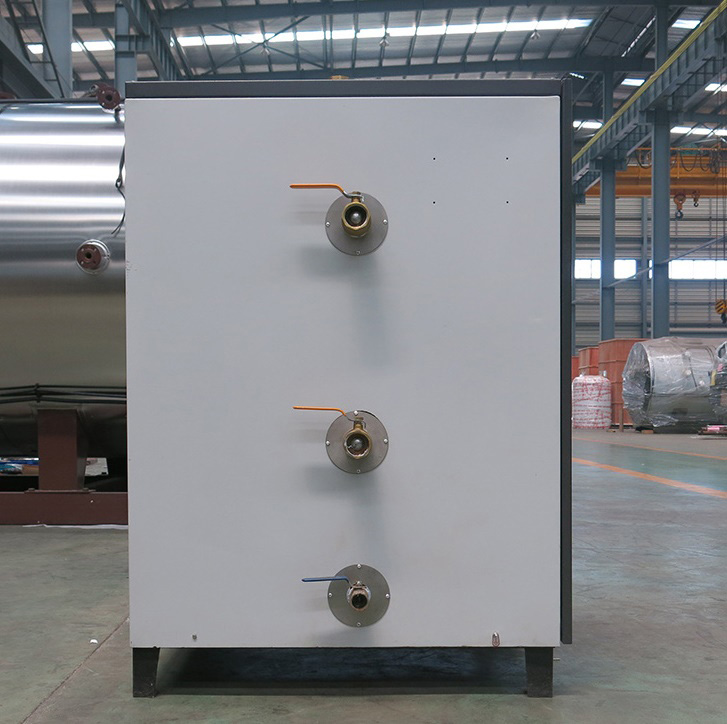

Product Detail Analysis
Technological Process
Our Customer
Our Services
For each user, we understand and analyze in detail their different production environment and the shortage of products in order to provide reasonable technical solutions and timely after-sales service. We attach great importance to the effective operation system of boiler products to provide customers with problem solutions, and send experienced engineers to the site to guide. The company has accumulated a wealth of on-site problem-solving experience, providing strong technical support and perfect after-sales service. User success is our success!
Company Information
Wilford company is specialized in manufacturing the medium and small sized boilers with high quality to solve the high energy efficiency requirements of customers in industrial and commercial fields for steam and heat sources. We supply the whole solution of boilers and boiler systems, reduce energy consumption, save operating costs for each plant, enhancing the environmental protection requirements.
Since 1998, the company are insisted on intelligent and lean production as the leading factor to ensure that each product is super safe and high quality. The fuel, gas and electric heating boilers have high technical content. The company has won many inventions, many high-tech products and new technology and new product awards. We regard the boiler’s efficiency index and extremely low nitrogen emission requirements as the main innovation objectives, Keep unremitting efforts in the environmental protection and energy saving of boilers.
Our products have obtained ASME, CE, SIGAPORE MOM, MALAYSIA DOSCH, AUSTRALIAN WORK SAFE, RUSSIA CU-TR and other certification, the local registration of various countries and other problems are very professional, we have a very strong service team, good service for each customer is our only pursuit!
Type | CLDR0.03-85/60 | CLDR0.045-85/60 | CLDR0.06-85/60 | CLDR0.075-85/60 | CLDR0.09-85/60 | CLDR0.105-85/60 | CLDR0.12-85/60 | CLDR0.15-85/60 | CLDR0.18-85/60 | CLDR0.2-85/60 | CLDR0.25-85/60 | CLDR0.3-85/60 | CLDR0.36-85/60 | CLDR0.4-85/60 | CLDR0.45-85/60 | CLDR0.5-85/60 | CLDR0.54-85/60 | CLDR0.6-85/60 | CLDR0.65-85/60 | ||
Project | Unit | ||||||||||||||||||||
Rated heating capacity | MW | 0.03 | 0.045 | 0.06 | 0.075 | 0.09 | 0.105 | 0.12 | 0.15 | 0.18 | 0.2 | 0.25 | 0.3 | 0.36 | 0.4 | 0.45 | 0.5 | 0.54 | 0.6 | 0.65 | |
Total heating capacity | 104kcal | 2.5 | 3.8 | 5.0 | 6.3 | 7.5 | 8.8 | 10.0 | 12.5 | 15.0 | 16.7 | 20.8 | 25.0 | 30.0 | 33.3 | 37.5 | 41.7 | 45.0 | 50.0 | 54.2 | |
Rated working pressure | MPa | Ordinary pressure | |||||||||||||||||||
Input Power | KW | 30 | 45 | 60 | 75 | 90 | 105 | 120 | 150 | 180 | 200 | 250 | 300 | 360 | 400 | 450 | 500 | 540 | 600 | 650 | |
Input current | A | 45 | 67.5 | 90 | 112.5 | 135 | 157.5 | 180 | 225 | 270 | 300 | 375 | 450 | 540 | 600 | 675 | 750 | 810 | 900 | 975 | |
Rated Voltage | V | 3PN 380 50Hz | |||||||||||||||||||
a Water outlet diameter | DN | 40 | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 65 | 65 | 65 | 65 | 65 | 80 | 80 | 80 | 80 | |
b Water inlet diameter | DN | 40 | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 65 | 65 | 65 | 65 | 65 | 80 | 80 | 80 | 80 | |
c Water return diameter | DN | 40 | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 65 | 65 | 65 | 65 | 65 | 80 | 80 | 80 | 80 | |
d Blowoff Valve diameter | DN | 20 | 20 | 20 | 20 | 20 | 25 | 25 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |
e Expansion tube diameter | DN | 40 | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 65 | 65 | 65 | 65 | 65 | 80 | 80 | 80 | 80 | |
Overall size | Length | L mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 1200 | 1200 | 1200 | 1200 | 1200 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
Width | W mm | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 1100 | 1100 | 1100 | 1100 | 1100 | 1200 | 1200 | 1200 | 1350 | 1350 | 1350 | 1350 | |
Height | H mm | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1900 | 1900 | 1900 | 1900 | 1900 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2200 | |
Weight | kg | 140 | 150 | 160 | 170 | 180 | 190 | 200 | 450 | 485 | 520 | 555 | 590 | 620 | 665 | 710 | 755 | 800 | 845 | 890 |
Q : Are you a factory or a trading company?
A : We are a 20-year-old industrial boiler factory , specializing in gas oil diesel electric fired boilers. Now we are one of leading industrial boiler manufacturers in China.
Q : What is the Warranty for the boilers?
A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.
Q : How long should we wait for delivery?
A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time .
Q What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
